When parking, please pay attention to those vehicles and pedestrians around. Park it to the right side of flat road slowly, do not park it on a slope.
After parking it stably, turn the power supply lock rightwards to pull it out and take it down, and then lock the bicycle with a lock.
Main Technical Parameters:
I .Main technical parameters of the scooter:
| 1.Product Size: | 1962*318*1159mm |
| 2. Wheelbase: | 1482mm |
| 3. High: | 1159mm |
| 4. Weight: | 85kgs |
| 5. Tire specifications: | 215/40-l2 |
| 6. Maximum load: | 180kgs |
| 7. Design top speed: | ≤85km/h (4000w) |
| 8. Range: | 40~120km |
| 9.Maximum torque: | 120N/M |
| 10.Maximum climbing: | ≤25 |
| 11.Braking performance(20 km/h): | Dry:≤1m;Wet:≤3m. |
II .Main technical parameters of battery:
| 1. Battery type: | Lithium batteries |
| 2. Capacity: | 20AH-60AH |
| 3. Nominal voltage: | 60V |
III . Main technical parameters of motor:
| 1.Motor models: | Brushless dc motor hub |
| 2. Rated power: | 1500W/2000W/3000W/4000W |
IV . Main technical parameters of controller:
| 1. Current limiting protection value: | 70 + 1A |
| 2. Under-voltage protection value: | 48士0.5V |
V . Charger main parameters:
| 1.The input voltage(ac): | 100-240VAC50/60HZ |
| 2.The output voltage(dc): | 67.2~6.0A |
| 3. Charging time | 3-4 h |

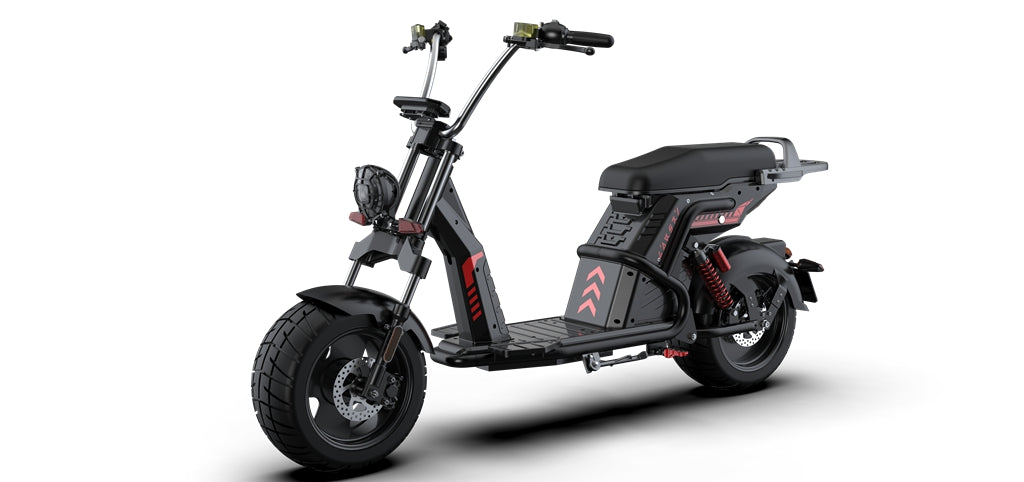

how to park a Rooder citycoco scooter?
